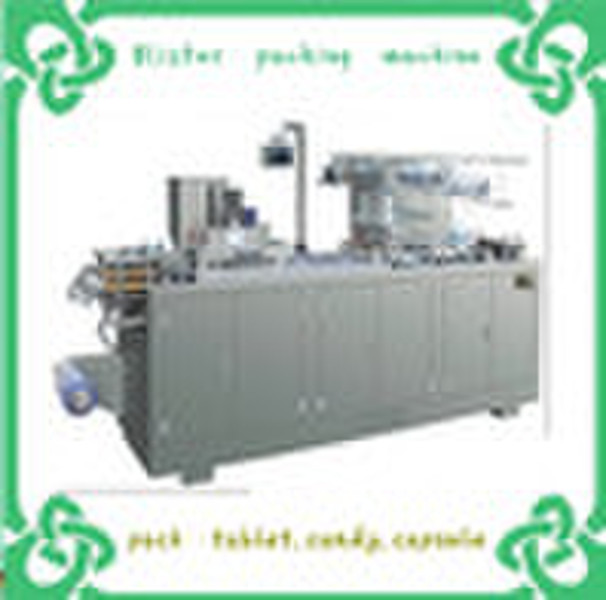

DPP250F Fully automatic Blister packing machine

DPP-250F Blister Packaging machine I. Description: 1. DPP-250F Blister packaging machine collects optic, machine, electricity and air as incop-porator, and was controlled by programmable PLC. 2. It is widely used in industry of pharmaceutical, foodstuff, electron, medicine equipment and metals products. 3.It is suitable for AL/PVC, PAPER/PVC, AND AL/AL packing. 4.The main working procedure such as forming, feeding, hot-envelop, impressing, cutting can be completed automatically. 5. The machine can also be matched with servo traction device, photoelectric VS print device, fiber detector or video detector according to the demand of customers. II. Technical parameters: 1. Cutting frequency: 20-240 plates/min 2. Productivity: 18000 236000 pieces/h 3. Max. forming area: 160mm*240mm 4. Max. forming depth: 26mm 5. Adjusting range of travel: 40mm-160mm 6. Size of standard plate: 80*57mm 7. Width and thickness of PVC and PTP: PVC:250*0.15 0.45mm PTP:250*0.02 0.03 8. Power supply: 380V 50HZ, Main motor 1.5kw, Hot-sealing 4.5kw 9. Capacity of air compressor:≥0.2m3/min 10. Cooling of mold: Tap water or cycling water, 60L/H 11. Overall size: 2890*700*1600mm 12. Size of encasement: 3200*1000*1800mm 13. Weight: 1680kg
