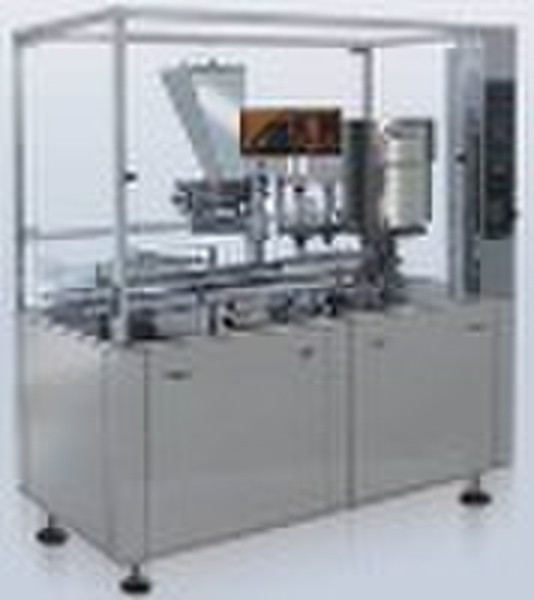

Injection vial powder filling machine

(FG-KFG2-A) KFG SERIES POWDER FILLING MACHINEI. Production capacity: 7Ml vial filling dosage 1g 100 120 bts/min II. Working principle: This machine consists of turntable, graduator, filling head, stoppering device and bottle outlet track. The turntable and stainless steel chain is used to transfer the bottles, and the stepping motor is used to drive the filling auger. Filling process: the chain sends the vial to the graduator, then the powder conveying screw and the filling auger fill the powder into the vial according to preset step number. The stoppering device also add stopper on the vial when filling is finished and vial sent to stoppering position during the stop time of the graduator. III. Characteristic: Small volume,suitable for pharmaceutical companies with small production capacity and small room size. Different type of filling auger meets requirements of different powder fluidity Single chip system control the whole process, high automation degree Can adjust the filling dosage without stopping the machine Touch panel control can set the filling dosage without stopping the machine Speed controlled by inverter Falling bottle auto reject; no bottle, no filling; no stoppers, auto stops; insufficient stoppers alarm Auto counting function 2 heads filling, 2 heads stoppering CE certified, standard electric installation, safety guarantee on operation Auto stop filling when filling auger touches filling nozzle and alarms Easy to change the change part, filling dosage adjustable Optional acrylic glass hood, laminar flow, sealed air outlet device The whole machine is designed according to GMP requirements IV. Technical parameters: Suitable bottle range: 7-250ml tubular or molded vial. Power supply: 380v 50Hz Power consumption :1kw Filling error: ≤2% Auto stoppering ration:99.5% Speed control by inverter Single machine noise: ≤70dB Vacuum degree:-6x10-2Mpa Vacuum qty:14m3/h Weight: 400kg Dimension: 1680x1000x1750(mm)
