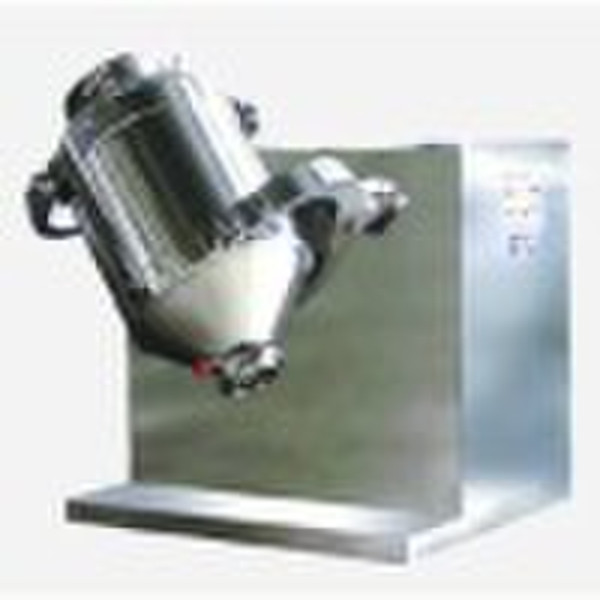

Three-dimension swing mixing machine

Model SBH Three-dimensional Swing Mixer Application: This machine is widely applied for the mixing of powder material by pharmacy, chemical, and foodstuff industries, as well as for the quick and even mixing of various materials in different granules size and gravity. Main properties: With its unique three –dimension swing, parallel moving, and rolling methods, the mixer can generate a strong pulse movement to push forward and mix the target materials continuously. The excellent mixing effects are through the result of its changeable vortex movement that possesses the energy grads inside. It also has the merits of smooth running, lowly noise, high load factor, and shortly mixing time as well. Technical Parameters:TypeSBH-50SBH-100SBH-200SBH-300SBH-400SBH-500SBH-600SBH-800SBH-1000Mixing barrel volume(L)501002003004005006008001000Max. loading volume(L)4080160240320400480640800Max .loading weight(kg)2550100150200250300400500Speed of principal axis(r/min)8-12Power(KW)1.11.52.2445.55.57.57.5Overall size(L×W×H)(mm)1000 ×1400 ×11001200 ×1700 ×12001400 ×1800 ×15001800 ×1950 ×17001800 ×2100 ×18001900 ×2000 ×19501900 ×2100 ×21002200 ×2400 ×22502250 ×2600 ×2400Weight (kg)300500800100012001380150020002500
