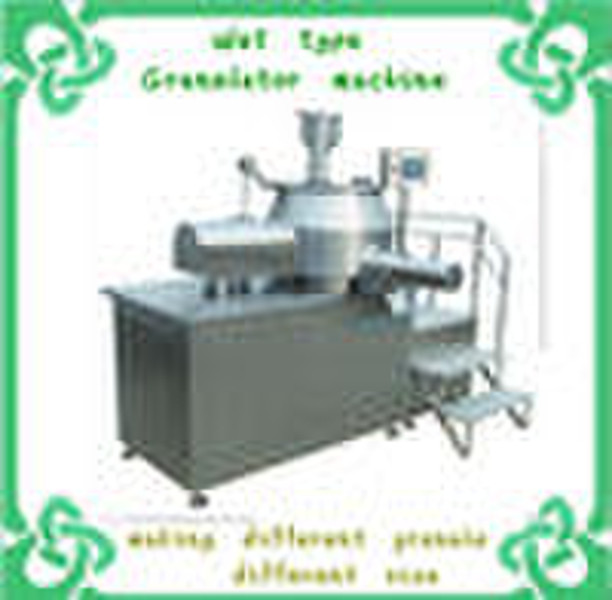

Wet mixing granulator

Supper Mixing Granulator Model LM-10,50,100,200,300,400,600 Application:This machine is widely used in pharmaceutical, food, chemical and light industries,Etc. to blend powdery materials and granulate.Working principle:The blending and granulating procedures and completed in the same vessel of the machine. Powdery materials in the stationary conic vessel remain in a semi-flowing and rolling state owing to the agitation by a blending paddle, and are fully mixed. After pouring in adhesives ,the powdery materials gradually change into fine, damp granules turn moist and their shapes begin paddle and the inside wall of vessel, powdery materials turn into loose, soft materials. Through the action of granule shaping paddle, the soft materials gradually change into fine, damp granules with the same size.Technical parameters:ModelLM10LM50LM100LM200LM300LM400LM-600Total capacity10 dm350 dm3100 dm3200 dm3300 dm3400 dm3600dm3Working capacity2-6 dm312-36 dm325-70 dm350-150 dm360-220 dm3100-280 dm3150-440dm3Material feeding capacity1-3kg6-18kg12-35 kg25-75 kg30-110 kg50-140 kg75-220kgStirring paddle rotary speed50-500r.p.m50-500r.p.m30-360r.p.m30-260r.p.m20-200r.p.m20-200r.p.m20-200r.p.mCutting knife rotary speed50-3000r.p.m50-1460r.p.mLength1500210024002250250025002900mmWidth5707809001700196019602630mmHeight of outlet7007257509309309301150mmHeight1350150017002100222023202330mmWeight2604207601200160016503000kg
